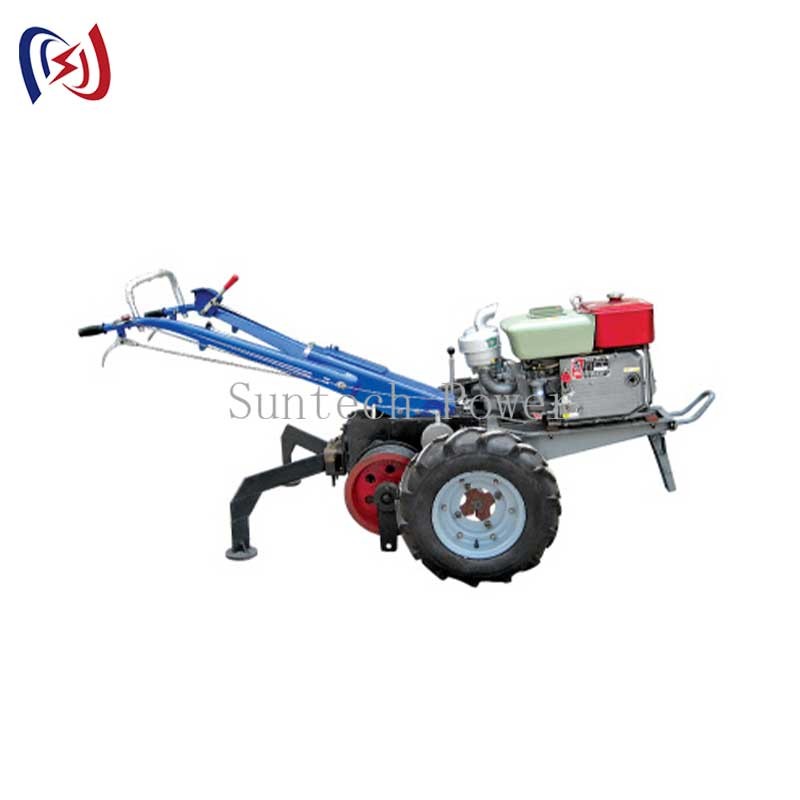

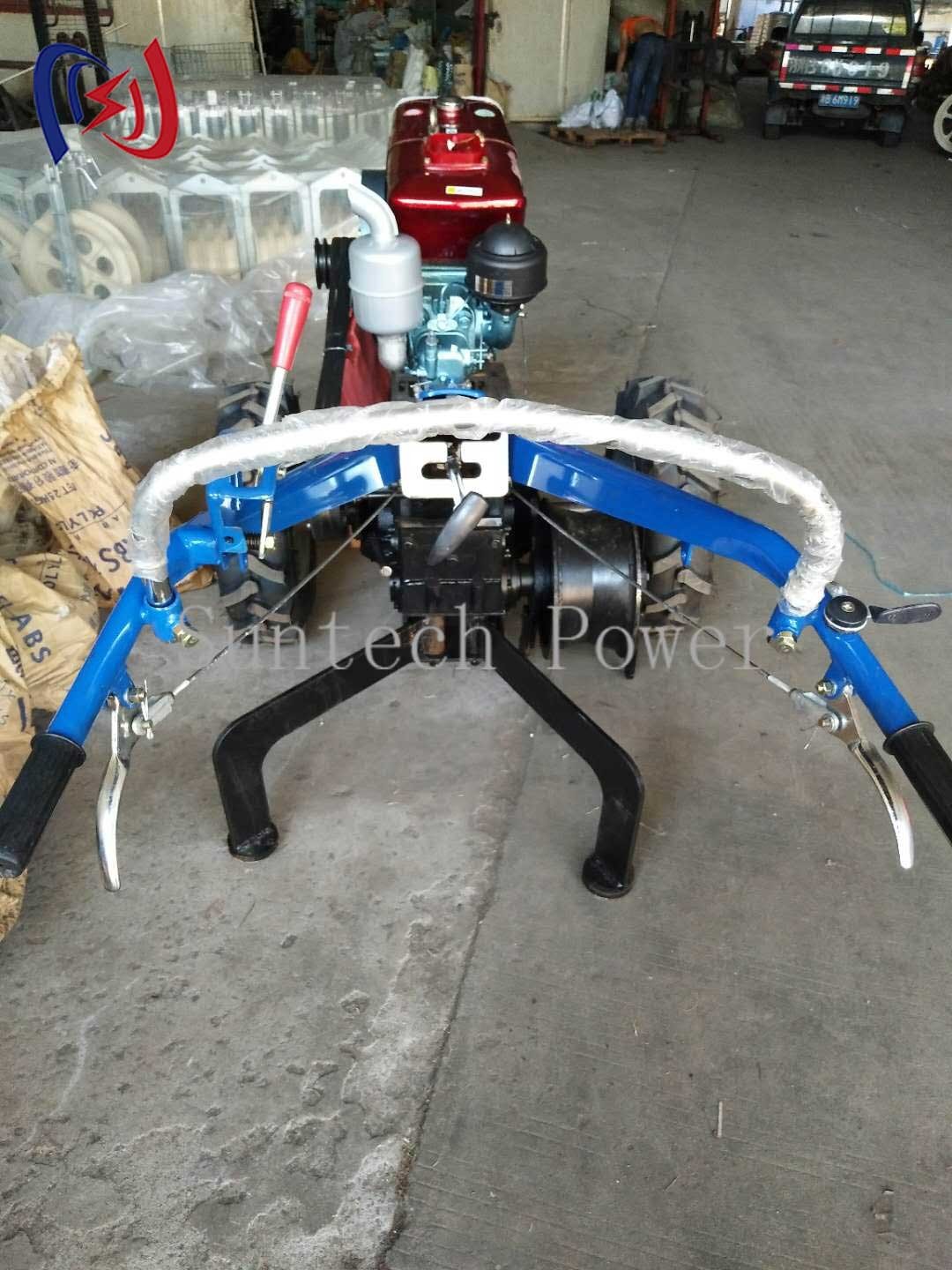

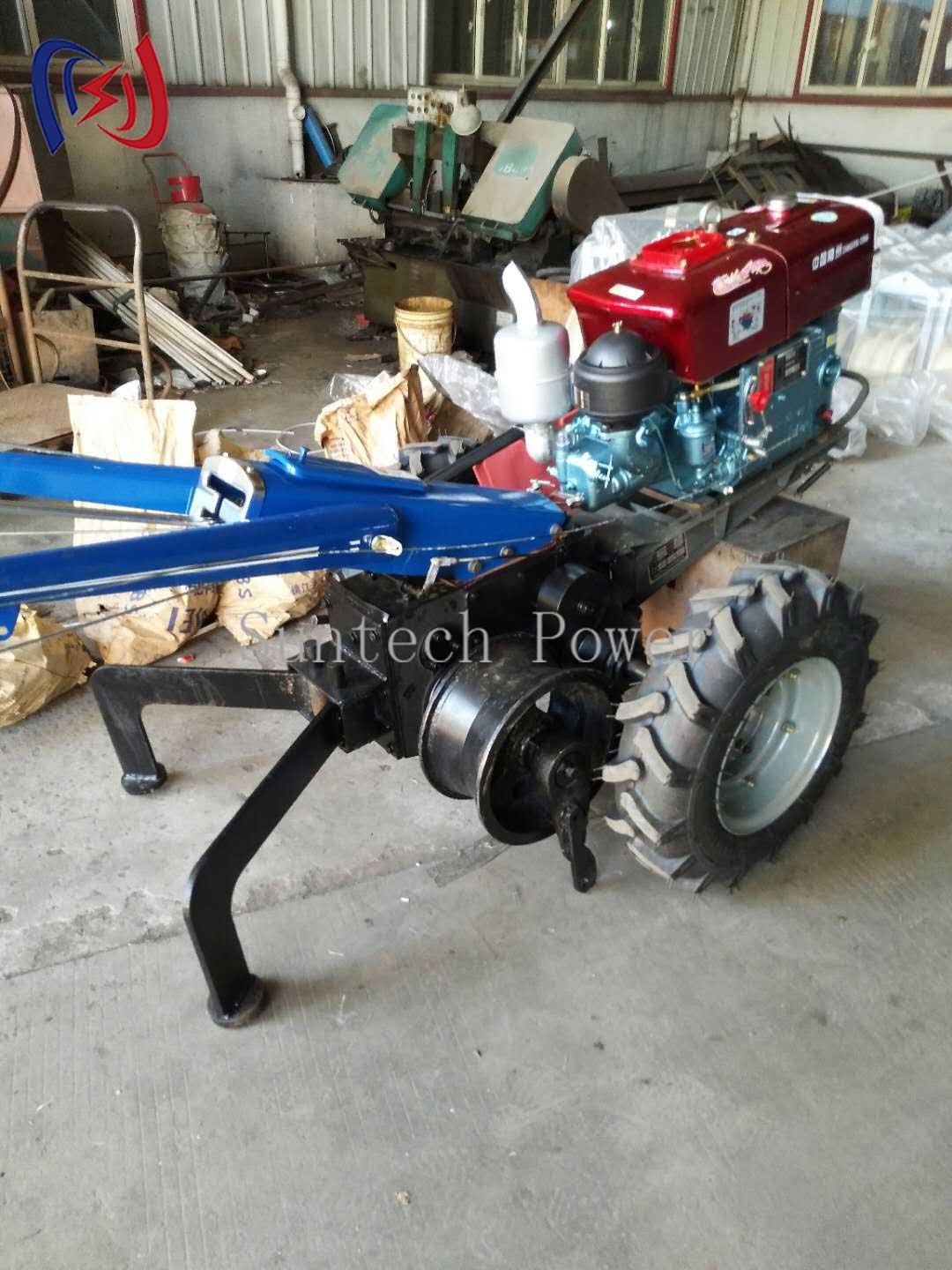

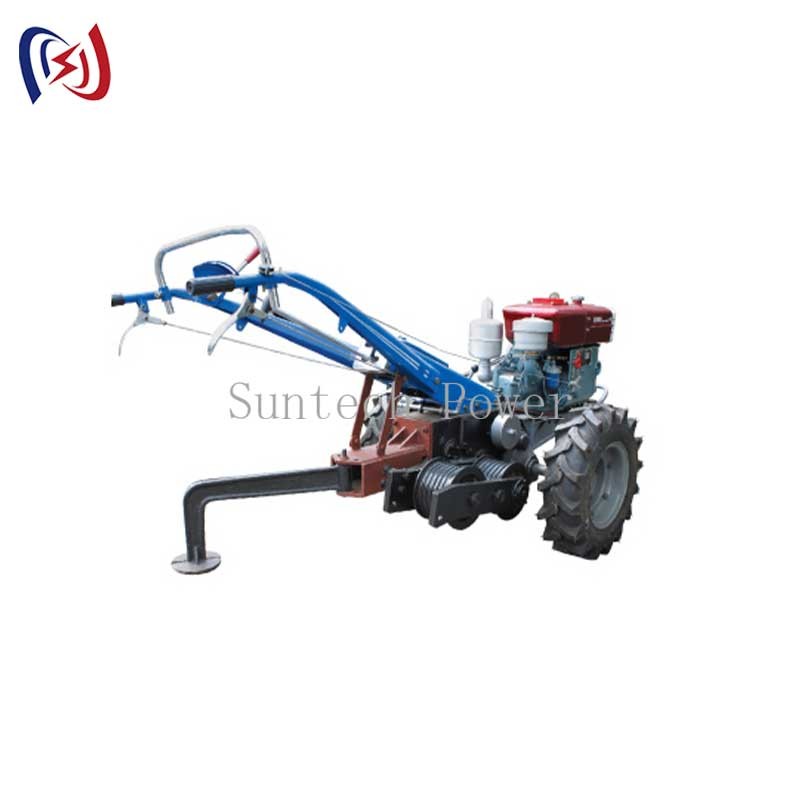

Walking Tractor Winch - Heavy-Duty 60T Capacity for Forestry & Agricultural Applications
The Walking Tractor Winch is a professional-grade pulling system specifically designed for forestry, agriculture, and land management applications. With a 3000kg (6,614lb) pulling capacity, this winch delivers exceptional performance in challenging terrains, making it ideal for log extraction, land clearing, and farm operations. The 12V/24V hydraulic system ensures reliable power delivery, while the auto-brake function provides secure load holding.
Key Features:
✔ Heavy-Duty Construction - Reinforced steel frame for maximum durability
✔ Hydraulic Power System - Smooth operation with minimal maintenance
✔ Auto-Brake Function - Automatically locks the load when stopped
✔ Portable & Compact - Easy to install and operate on various tractor models
✔ Weather-Resistant Design - Protected against dust, water, and extreme temperatures
Performance Benefits:
Technical Specifications:
Ideal Applications:
Item No. | Model | Ground Clearance(MM) | wheel-base(MM) | Power (HP) | speed (RPM) | Travel speed(KM/H) | Outline size(MM) | Weight(KG) |
09171 | 12-A | 150 | 1040 | 15 | 2000 | 3-13 | 2670*1040*1300 | 550 |
09172 | 12-B | 150 | 1040 | 15 | 2000 | 3-13 | 2670*1040*1300 | 600 |
Gear | Ⅰ | Ⅱ | Ⅲ | 4 | reversal Ⅰ | reversal Ⅱ |
Traction force(T) | 60 | 37 | 20 | 12 | / | / |
Traction speed (M/MIN) | 11.7 | 18.9 | 34.4 | 55.6 | 6.2 | 21.3 |
