Reliable Manual Chain Hoist with 5-200KN Rated Load, Precision Gear System, and Automatic Load Braking for Heavy Lifting

1 PZ
MOQ
negotiable
prezzo
Reliable Manual Chain Hoist with 5-200KN Rated Load, Precision Gear System, and Automatic Load Braking for Heavy Lifting
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Nome: paranco a catena manuale
Articolo n.: 14282-14351
Carico nominale: 5-200KN
Distanza minima tra gli anelli: 280-1040 mm
Altezza di elevazione standard: 3m
Numero di linee di catena di sollevamento: 1-8row
Peso: 10-193 kg
Garanzia: 1 anno
Evidenziare:

5-200KN Rated Load Chain Hoist

,

Precision Gear System Manual Chain Hoist

,

Automatic Load Braking Hand Chain Hoist
Informazioni di base
Luogo di origine: Ningbo
Marca: Suntech
Certificazione: ISO
Numero di modello: Manuale
Termini di pagamento e spedizione
Imballaggi particolari: custodia in compensato
Tempi di consegna: 3-7 giorni
Termini di pagamento: L/C, T/T
Capacità di alimentazione: 3000 pezzi/mese
Descrizione di prodotto

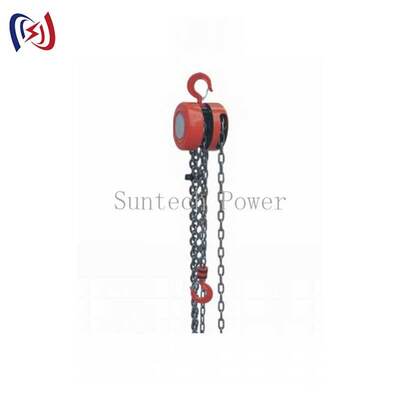

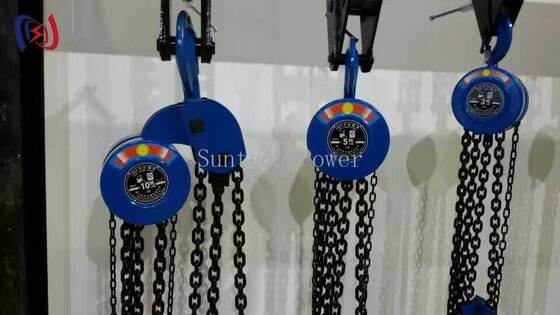

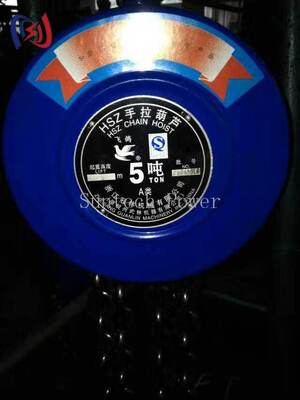

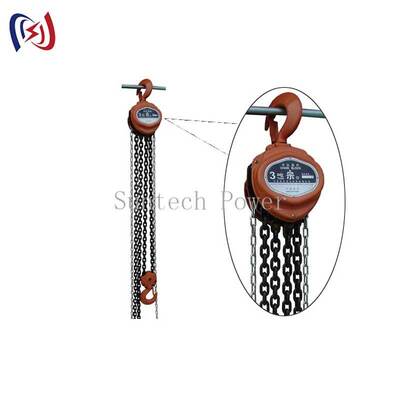

Reliable Manual Chain Hoist for Heavy Lifting
The Manual Chain Hoist provides a dependable, powerful, and portable solution for material handling tasks in power construction and utility industries. Operating through human power applied to a hand chain, this robust device utilizes an efficient gear system to multiply force, enabling safe lifting, lowering, and precise positioning of heavy electrical components where powered equipment is impractical.
Technical Specifications
Item No. 14282 14292 14302 14312 14321 14331 14341 14351
Rated Load (KN) 5 10 15 20 30 50 100 200
Min Distance Between Hooks (MM) 280 320 390 410 485 600 820 1040
Standard Lifting Height (M) 3
Number of Chain Lines 1 1 1 1 2 2 4 8
Net Weight (KG) 10 12 19 20 27 45.5 83 193
Lifting Height 14283 14293 14303 14313 14322 14332 14342 14352
4M 14283 14293 14303 14313 14322 14332 14342 14352
5M 14284 14294 14304 14314 14323 14333 14343 14353
6M 14285 14295 14305 14315 14324 14334 14344 14354
8M / / / / 14325 14335 14345 14355
10M / / / / 14326 14336 14346 14356
Weight of 1M Chain (KG) 1.7 1.7 2.3 2.3 3.7 5.6 9.7 19.4
Reliable Manual Chain Hoist with 5-200KN Rated Load, Precision Gear System, and Automatic Load Braking for Heavy Lifting 0
Key Features and Benefits
Powerful Mechanical Advantage
Robust gear train multiplies input force, allowing single-person operation for lifting transformers, cable drums, and switchgear.
Exceptional Precision and Control
Millimeter-precise load movement for aligning bolt holes, positioning instruments, and exact equipment mounting.
Complete Operational Independence
No electricity, batteries, or compressed air required - ideal for remote locations and hazardous environments.
Inherent Safety with Automatic Braking
Automatic load brake engages when tension is released, preventing accidental lowering and free-fall.
Robust Industrial Construction
High-strength alloy steel housing, hardened gears, and durable load chain for demanding applications.
Compact and Portable Design
Lightweight and easy to transport, mount quickly onto I-beams, trolleys, or portable gantries.
Wide Power Industry Applications
Essential for installing circuit breakers, transformers, lifting busbars, and handling conductors.
Cost-Effective Operation
No energy costs with simple maintenance - periodic lubrication and chain inspection.
Versatile Mounting and Applications
Effective for both vertical lifting and horizontal pulling applications like cable tensioning.
Fundamental Professional Tool
Reduces physical strain and accident risk while enhancing team capability for heavy lifts.
Investing in a high-quality Manual Chain Hoist equips your team with a trustworthy, versatile, and safe mechanical lifting device that enhances operational capability, improves work efficiency, and ensures precise handling across electrical construction and maintenance activities.
