Heavy Duty Dual Hook Steel Turnbuckle for Precise Tensioning with 5-100KN Rated Load on Transmission Tower Guy Wires

1 PZ
MOQ
negotiable
prezzo
Heavy Duty Dual Hook Steel Turnbuckle for Precise Tensioning with 5-100KN Rated Load on Transmission Tower Guy Wires
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Nome: Tenditore in acciaio a doppio gancio
Articolo n.: 14111
Modello: SJS-1
Carico nominale: 5-100KN
Distanza media massima: 800-1740 mm
Distanza regolabile: 250-600mm
Peso: 2.5-10kg
Garanzia: 1 anno
Evidenziare:

Heavy Duty Steel Turnbuckle

,

Precise Tensioning Turnbuckle

,

5-100KN Rated Load Dual Hook Steel Turnbuckle
Informazioni di base
Luogo di origine: Ningbo
Marca: Suntech
Certificazione: ISO
Numero di modello: SJS-1
Termini di pagamento e spedizione
Imballaggi particolari: custodia in compensato
Tempi di consegna: 3-7 giorni
Termini di pagamento: L/C, T/T
Capacità di alimentazione: 1000 pezzi/mese
Descrizione di prodotto
Heavy Duty Dual Hook Steel Turnbuckle for Precise Tensioning on Transmission Tower Guy Wires

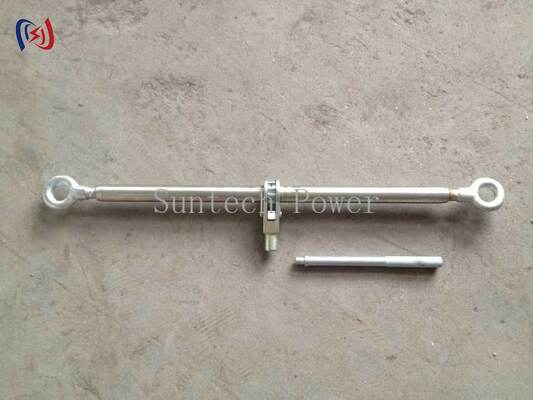

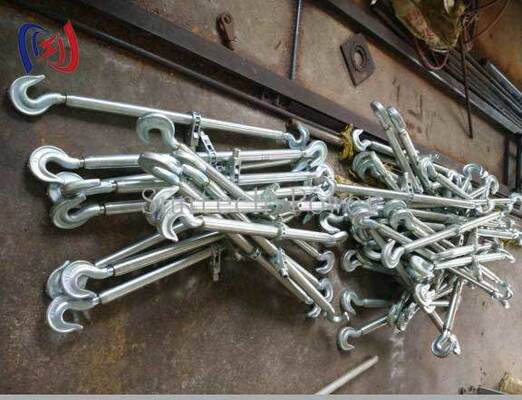

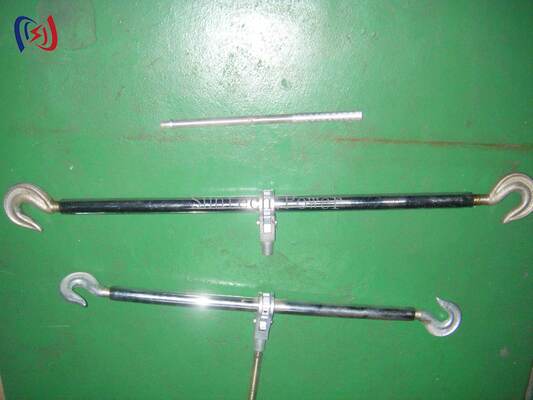

Heavy Duty Dual Hook Steel Turnbuckle for Precise Tensioning with 5-100KN Rated Load on Transmission Tower Guy Wires 0 The Dual Hook Steel Turnbuckle is a fundamental tensioning device used extensively in power construction to adjust, tighten, and secure cables, wires, and support systems. Featuring a central threaded body with two opposing closed hooks, this robust design enables secure, adjustable connections between anchor points. Field crews can make precise tension adjustments to guy wires, support cables, and structural braces, ensuring stability, alignment, and safety for utility poles, transmission towers, and electrical infrastructure.
Product Specifications
Item Number Model Rated Load (kN) Maximum Center Distance Adjustable Distance (mm) Weight (kg) Remark
14111SJS-0.558003002.5Steel
14112SJS-1108602503.5
14113SJS-22010503404
14114SJS-33013504706
14115SJS-55014405108
14116SJS-88016705608.5
14117SJS-10100174060010
Key Features & Benefits
  • Precise Tension Adjustment: Fine-tuned field adjustment of cable tension through rotation of the central body
  • Secure Hook Connection: Closed hook design provides reliable attachment points for thimbles, shackles, or eyes
  • High Load Capacity: Manufactured from high-tensile steel to withstand significant tensile loads
  • Corrosion Resistance: Hot-dip galvanized coating protects against rust in harsh environments
  • Structural Stability: Ensures proper tension to counteract lateral forces and prevent structural failure
  • Easy Installation: Central barrel features holes for lever insertion, allowing safe ground or climbing adjustments
  • Versatile Applications: Suitable for utility poles, transmission towers, substations, and temporary bracing
  • Long Service Life: Minimal maintenance required with robust construction and protective finish
  • Critical Infrastructure Component: Contributes directly to grid reliability and resilience
By choosing a high-quality Dual Hook Steel Turnbuckle, you invest in the precision, safety, and longevity of your electrical support structures.
